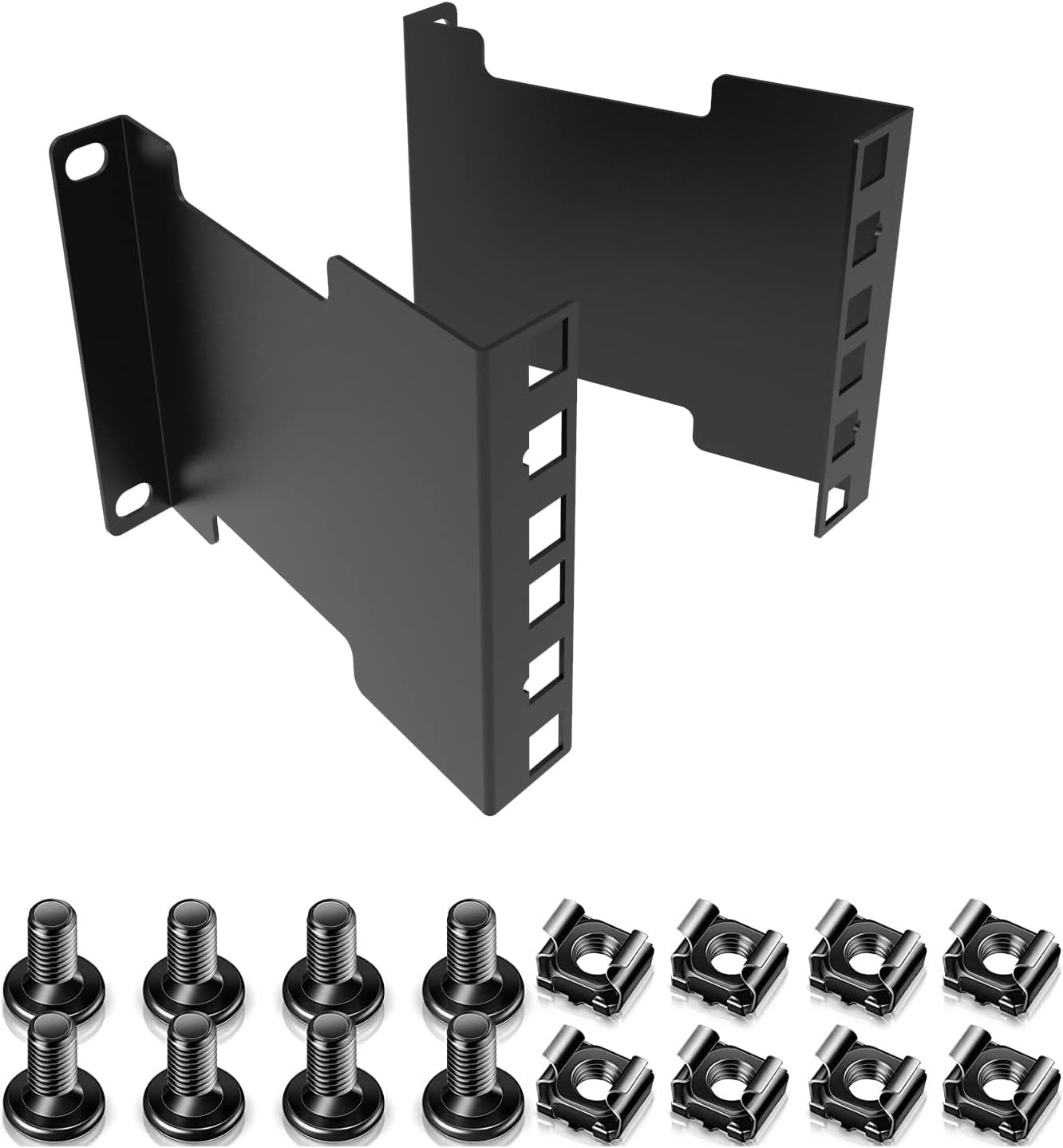

2U Server Rack Depth Extender Bracket | Universal Rack Mount Extension Ears | Fits 2-Post & 4-Post 19” Cabinets

This 2U Server Rack Depth Extender Bracket is an ideal solution for extending the mounting depth of your rack-mounted devices. It bridges the gap between short rack ears and mounting rails, providing compatibility for both 2-post and 4-post racks. Perfect for network switches, power distribution units (PDUs), AV gear, and other 19-inch rackmount devices that need additional support or alignment.

Made of high-quality steel and finished with black rust-resistant coating, this extender bracket ensures strength, stability, and durability in demanding environments. It comes with square mounting holes for equipment compatibility and oval mounting holes for flexibility in rack positioning.

Each pair supports a 2U rack space and allows for strong and secure installations. It supports up to 90 lbs (40 kg) on 4-post racks, and 22 lbs (10 kg) on 2-post racks.

Key Features:

• 2U height, compatible with standard 19" rack-mounted devices

• Reinforced steel construction for enhanced durability

• Suitable for both 2-post and 4-post racks

• Accommodates short ear-mount devices by extending mounting reach

• Square and oval hole design supports various fastener systems

• Black powder-coated finish for corrosion resistance

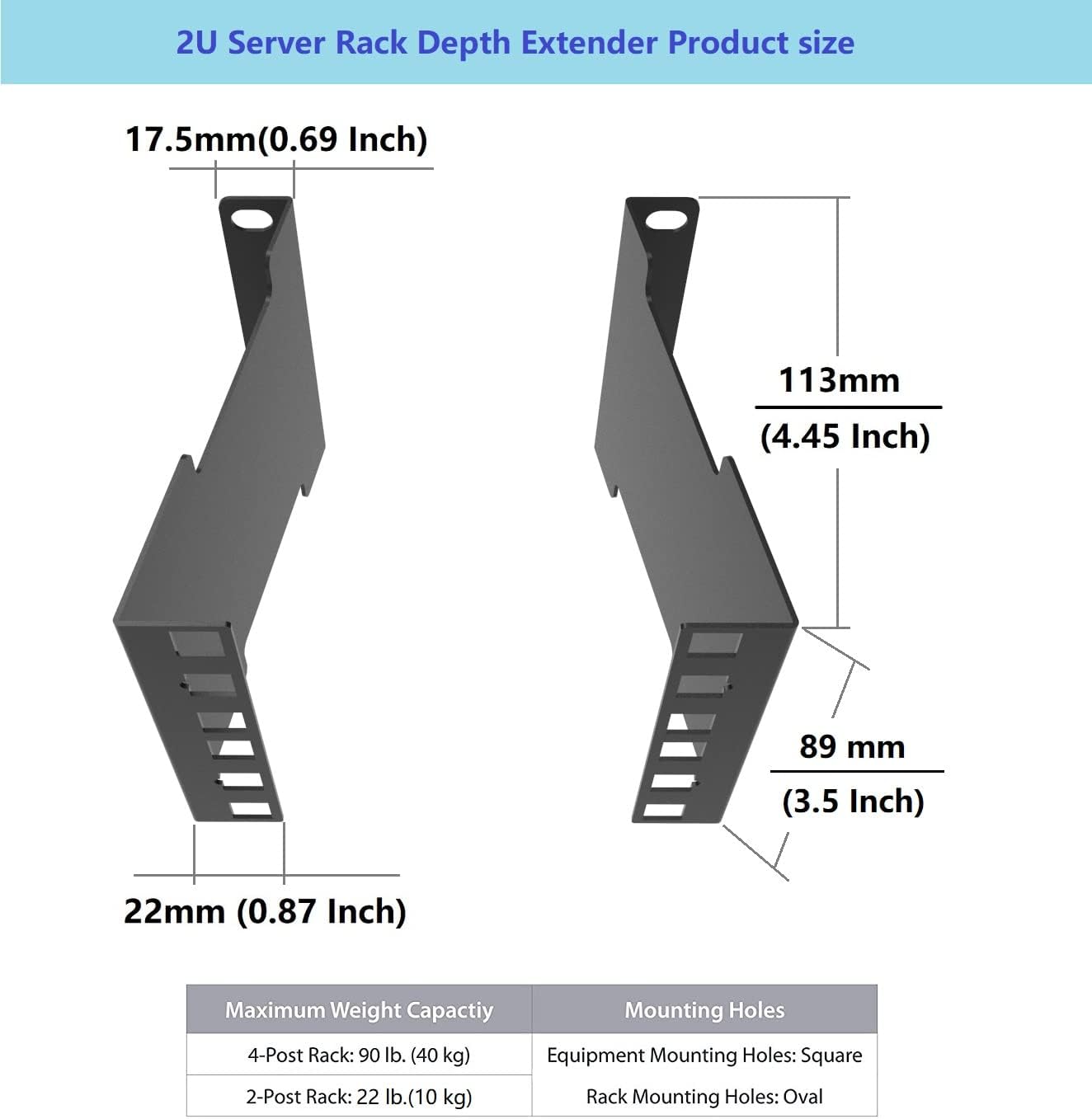

Product Dimensions:

• Total Height: 113mm (4.45 in)

• Extension Depth: 89mm (3.5 in)

• Bracket Width: 22mm (0.87 in)

• Top Edge: 17.5mm (0.69 in)

• Equipment Mounting Holes: Square

• Rack Mounting Holes: Oval

Weight Capacity:

• 4-post rack: Max 90 lbs (40 kg)

• 2-post rack: Max 22 lbs (10 kg)

Ideal For:

• Server room and data center installations

• AV and broadcast rack setup

• Industrial automation and control systems

• Network switch and UPS bracket extensions
